MINIATURE LOW PROFILE SPEAKER

Use the filters below to narrow your search results...

Reset

Product Compare (0)
PDF Product Part No. FRAME DIAMETER FRAME DEPTH VOICE COIL IMPEDANCE RATED POWER WATTS RESONANT FREQUENCY HZ WITOUT BAFFLE FREQUENCY RESPONSE OUTPUT SOUND PRESSURE LEVEL MEASURED AT MEAN VALUE AT MATERIAL CONE/FRAME ROHS COMPLIANT
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S100RMS 28.0 mm 7.2 mm 8 ± 15% @1.0KHz 0.50 / 1.00 700 ± 20% Fo ~ 9000 80 ± 3 dB 0.5 W @ 1.0M 1.0,1.2,1.5, 2KHz MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S100RMSS 28.0 mm 3.9 mm 8 ± 15% @1.5KHz 0.10 / 0.20 540 ± 20% Fo ~ 5000 78 ± 3 dB 0.1 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S100RMSS-R2W 28.0 mm 4.3 mm 8 ± 15% @1.2KHz 0.20 / 0.30 850 ± 20% Fo ~ 5600 82 ± 3 dB 0.2 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S100RS-M 26.0 mm 4.4 mm 8 ± 15% @1.5KHz 0.50 / 1.00 540 ± 20% Fo ~ 20000 83 ± 3 dB 0.5 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S110RMSS 28.0 mm 4.8 mm 8 ± 15% @1.0KHz 0.50 / 1.00 560 ± 20% Fo ~ 7000 82 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S110RS-M-R5W 28.0 mm 4.8 mm 8 ± 15% @1.5KHz 0.50 / 1.00 530 ± 20% Fo ~ 20000 82 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE SQUARE SPEAKER S110SL 28.0 x 28.0 mm 10.8 mm 8 ± 15% 2.00 / 3.00 270 ± 20% Fo ~ 20000 82 ± 3 dB 1.0 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / PLASTIC YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S125RL-M 30.0 mm 5.0 mm 8 ± 15% @1.5KHz 0.50 / 1.00 600 ± 20% Fo ~ 6500 86 ± 3 dB 0.5 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S125RMS 30.0 mm 7.4 mm 8 ± 15% @2.0KHz 0.40 / 0.80 670 ± 20% Fo ~ 10000 88 ± 3 dB 0.4 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / PLASTIC YES

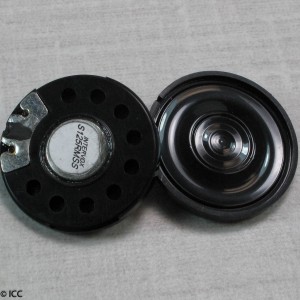

PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S125RMSS 30.0 mm 4.3 mm 8 ± 15% @1.5KHz 0.10 / 0.20 500 ± 20% Fo ~ 6000 77 ± 3 dB 0.1 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S125RS-M-R5W 32.0 mm 4.6 mm 8 ± 15% @1.2KHz 0.50 / 1.00 600 ± 20% Fo ~ 5000 87 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S125RSL-M-R5W 30.0 mm 4.0 mm 8 ± 15% @1.5KHz 0.50 / 1.00 650 ± 20% Fo ~ 3000 87 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE SQUARE SPEAKER S125SLA 32.0 x 32.0 mm 4.5 mm 8 ± 15% 0.20 / 0.40 800 ± 20% Fo ~ 7000 80 ± 3 dB 1.0 W @ 1.0M 1.2,1.5,2.0,2.5 KHz MYLAR / PLASTIC YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S150RL-R2W 40.0 mm 8.2 mm 8 ± 15% @1.5KHz 0.25 / 0.50 550 ± 20% Fo ~ 4000 87 ± 3 dB 0.25 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S150RLS 38.0 mm 8.0 mm 8 ± 15% @1.0KHz 0.10 / 0.20 700 ± 20% Fo ~ 3000 85 ± 3 dB 0.2 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S150RMSS 36.0 mm 4.0 mm 8 ± 15% @1.5KHz 0.10 / 0.20 420 ± 20% Fo ~ 6000 76 ± 3 dB 0.1 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S150RMSS-R2W 36.0 mm 4.0 mm 8 ± 15% @2.0KHz 0.20 / 0.40 530 ± 20% Fo ~ 5600 78 ± 3 dB 0.2 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S150RMSS-R3W 38.0 mm 4.2 mm 8 ± 15% @1.0KHz 0.30 / 0.60 380 ± 20% Fo ~ 20000 80 ± 3 dB 0.3 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S150RS-M 36.0 mm 4.8 mm 8 ± 15% @1.2KHz 0.20 / 0.50 450 ± 20% Fo ~ 12000 80 ± 3 dB 0.2 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S150RS-M-R5W 36.0 mm 4.6 mm 8 ± 15% @1.0KHz 0.50 / 1.00 500 ± 20% Fo ~ 6000 85 ± 3 dB 0.5 W @ 0.5M 0.6,0.8,1.0,1.2 KHz MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE SQUARE SPEAKER S150SLA 40.0 x 40.0 mm 4.6 mm 7.2 ± 15% @1.5KHz 0.20 / 0.30 560 ± 20% Fo ~ 7000 81 ± 3 dB 1.0 W @ 1.0M 1.0,1.2,1.5,2.0 KHz MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE SQUARE SPEAKER S150SLA-R5W 40.0 x 40.0 mm 5.5 mm 8 ± 15% @1.0KHz 0.50 / 1.00 540 ± 20% Fo ~ 5000 85 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / PLASTIC YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S160RL 40.0 mm 4.8 mm 8 ± 15% @1.0KHz 1.00 / 2.00 430 ± 20% Fo ~ 6500 90 ± 3 dB 1.0 W @ 0.5M 0.6, 0.8,1.0,1.2KHz PAPER / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER with ears S160RMS-B 40.0 mm 5.3 mm 8 ± 15% @1.0KHz 0.50 / 1.00 420 ± 20% Fo ~ 5500 87 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S160RMSS 40.0 mm 4.4 mm 8 ± 15% @1.0KHz 0.30 / 0.60 420 ± 20% Fo ~ 5000 84 ± 3 dB 0.3 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER with Mounting Ears S160RMSS-R5W 40.0 mm 4.1 mm 8 ± 15% @1.0KHz 0.50 / 1.00 460 ± 20% Fo ~ 20000 86 ± 3 dB 0.5 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S160RS-M-1W 40.0 mm 4.9 mm 8 ± 15% @1.0KHz 1.00 / 1.50 430 ± 20% Fo ~ 5000 84 ± 3 dB 1.0 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER S160RS-M-R2W 40.0 mm 4.9 mm 8 ± 15% @1.0KHz 0.20 / 0.40 350 ± 20% Fo ~ 6000 83 ± 3 dB 0.2 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE SQUARE SPEAKER S160SL 40.0 x 40.0 mm 9.0 mm 8 ± 15% @1.2KHz 0.20 / 0.30 550 ± 20% Fo ~ 6700 80 ± 3 dB 0.2 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S200RL 50.0 mm 8.8 mm 8 ± 15% @1.2KHz 0.25 / 0.50 500 ± 20% Fo ~ 4500 83 ± 3 dB 0.25 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S200RL-M-2W 50.0 mm 7.5 mm 8 ± 15% 2.00 / 2.50 350 ± 20% Fo ~ 13000 87 ± 3 dB 1.0 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S200RL-M-R3W 50.0 mm 7.5 mm 8 ± 15% @1.0KHz 0.30 / 0.60 400 ± 20% Fo ~ 5000 85 ± 3 dB 0.3 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S200RL-R2W 50.0 mm 8.9 mm 8 ± 15% @1.2KHz 0.25 / 0.50 500 ± 20% Fo ~ 4500 83 ± 3 dB 0.25 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S200RMS 50.0 mm 8.0 mm 8 ± 15% @1.5KHz 0.20 / 0.40 350 ± 20% Fo ~ 10000 80 ± 3 dB 0.2 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / PLASTIC YES
PDF SUB-MINIATURE LOW PROFILE SQUARE SPEAKER S200SL 50.0 x 50.0 mm 10.0 mm 8 ± 15% @1.2KHz 0.30 / 0.60 480 ± 20% Fo ~ 6000 81 ± 3 dB 0.3 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S225RL 57.0 mm 9.7 mm 8 ± 15% @1.0KHz 0.30 / 0.50 390 ± 20% Fo ~ 3800 93 ± 3 dB 0.3 W @ 0.5M 0.6, 0.8,1.0,1.2KHz PAPER / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S225RL-M 57.0 mm 9.7 mm 8 ± 15% @1.0KHz 0.30 / 0.50 390 ± 20% Fo ~ 3800 93 ± 3 dB 0.3 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER S225RMS 57.0 mm 8.0 mm 8 ± 15% @1.5KHz 0.20 / 0.40 350 ± 20% Fo ~ 20000 80 ± 3 dB 0.2 W @ 0.5M 0.6, 0.8,1.0,1.2KHz MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER SR430RMSS 11.0 mm 4.3 mm 8 ± 15% @2.0KHz 0.07 / 0.10 850 ± 20% Fo ~ 10000 74 ± 3 dB 0.07 W @ 0.1M 1.0,1.2,1.5,2.0 KHz MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER SR500RS-M 13.6 mm 4.6 mm 8 ± 15% @1.5KHz 0.05 / 0.10 1000 ± 20% Fo ~ 20000 83 ± 3 dB 0.05 W @ 0.1M 1.0,1.2,1.5,2.0 KHz MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER SR600RS-M 15.0 mm 3.5 mm 8 ± 15% @1.0KHz 0.30 / 0.50 780 ± 20% Fo ~ 5000 78 ± 3 dB 0.3 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER WITH SPONGE EDGE SR700RMS-2W 18.0 mm 5.2 mm 8 ± 15% 2.00 / 2.50 420 ± 20% Fo ~ 20000 79 ± 3 dB 1.0 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PEI / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER SR800RMS 20.0 mm 4.2 mm 8 ± 15% @1.5KHz 0.10 / 0.20 800 ± 20% Fo ~ 5300 71 ± 3 dB 0.1 W @ 0.5M 1.2,1.5,2.0,2.5 KHz MYLAR / PLASTIC YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER SR800RS-M 20.0 mm 2.4 mm 8 ± 15% @1.2KHz 0.30 / 0.60 490 ± 20% Fo ~ 6000 76 ± 3 dB 0.3 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF MICRO-MINIATURE LOW PROFILE ROUND SPEAKER SR800RS-M-1 20.0 mm 3.2 mm 8 ± 15% @1.5KHz 0.50 / 1.00 650 ± 20% Fo ~ 20000 78 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER SR900RL-M 23.0 mm 5.4 mm 8 ± 15% @1.5KHz 0.50 / 1.00 670 ± 20% Fo ~ 20000 80 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ MYLAR / METAL YES
PDF SUB-MINIATURE LOW PROFILE ROUND SPEAKER WITH SPONGE EGDE SR900RM-3W 22.0 mm 7.8 mm 8 ± 15% 3.00 / 3.50 300 ± 20% Fo ~ 20000 81 ± 3 dB 1.0 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PEN / PLASTIC YES
Showing 1 to 47 of 47 (1 Pages)
