GENERAL PURPOSE SPEAKER

Use the filters below to narrow your search results...

Reset

Product Compare (0)
PDF Product Part No. FRAME DIAMETER FRAME DEPTH VOICE COIL IMPEDANCE RATED POWER WATTS RESONANT FREQUENCY HZ WITOUT BAFFLE FREQUENCY RESPONSE OUTPUT SOUND PRESSURE LEVEL MEASURED AT MEAN VALUE AT MATERIAL CONE/FRAME ROHS COMPLIANT
PDF GENERAL PURPOSE ROUND SPEAKER S150RA 38.0 mm 16.6 mm 8 ± 15% 0.10 / 0.20 760 ± 20% Fo ~ 7000 75 ± 3 dB 0.1 W @ 0.5M 1.4,1.7,2.0,2.4KHz PAPER / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S200RA 50.0 mm 18.5 mm 8 ± 15% @1.0KHz 0.30 / 0.50 450 ± 20% Fo ~ 5000 90 ± 3 dB 1.0 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S200RA-M 50.0 mm 18.3 mm 8 ± 15% @0.8KHz 0.20 / 0.50 500 ± 20% Fo ~ 9800 84 ± 3 dB 0.2 W @ 0.5M 1K,1.4K,1.7,2KHZ MYLAR / METAL YES
PDF GENERAL PURPOSE SQUARE SPEAKER S200SA 51.7 x 51.7 mm 17.8 mm 8 ± 15% @1.0KHz 0.20 / 0.50 400 ± 20% Fo ~ 3400 96 ± 3 dB 0.1 W @ 0.1M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S225RA-45 57.0 mm 19.5 mm 45 ± 15% @1.0KHz 0.25 / 0.50 450 ± 20% Fo ~ 4000 88 ± 3 dB 1.0 W @ 0.5M 0.6, 0.8,1.0,1.2KHz PAPER / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S225RA-V 57.0 mm 19.5 mm 8 ± 15% @1.0KHz 0.25 / 0.50 450 ± 20% Fo ~ 4000 88 ± 3 dB 1.0 W @ 0.5M 0.6, 0.8,1.0,1.2KHz PAPER / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S250RA 66.0 mm 21.0 mm 8 ± 15% @1.0KHz 0.20 / 0.30 290 ± 20% Fo ~ 5000 86 ± 3 dB 0.3 W @ 0.5M 0.5,0.6,0.8,1.0KHz PAPER / METAL YES
PDF GENERAL PURPOSE SQUARE SPEAKER S250SA 66.5 x 66.5 mm 21.4 mm 8 ± 15% @1.0KHz 0.50 / 0.80 350 ± 20% Fo ~ 5000 91 ± 3 dB 0.8 W @ 0.5M 0.5,0.6,0.8,1.0KHz PAPER / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S275RA 70.0 mm 21.8 mm 8 ± 15% @1.0KHz 0.40 / 0.60 280 ± 20% Fo ~ 5000 86 ± 3 dB 0.5 W @ 0.5M 0.8, 1.0, 1.2, 1.5KHZ PAPER / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S300RA 77.0 mm 23.2 mm 8 ± 15% @1.0KHz 0.25 / 0.50 250 ± 20% Fo ~ 5000 90 ± 3 dB 0.5 W @ 0.5M 0.5,0.6,0.8,1.0KHz PAPER / METAL YES
PDF GENERAL PURPOSE SQUARE SPEAKER S300SA 77.0 x 77.0 mm 25.0 mm 8 ± 15% @1.0KHz 0.25 / 0.50 250 ± 20% Fo ~ 5000 90 ± 3 dB 0.5 W @ 0.5M 0.5,0.6,0.8,1.0KHz PAPER / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S350RA 92.0 mm 27.3 mm 8 ± 15% @1.0KHz 0.50 / 1.00 190 ± 20% Fo ~ 12000 92 ± 3 dB 1.0 W @ 0.5M 0.5,0.6,0.8,1.0KHz PAPER / METAL YES
PDF GENERAL PURPOSE SQUARE SPEAKER S350SA 92.0 x 92.0 mm 26.0 mm 8 ± 15% @0.8KHz 1.00 / 2.00 210 ± 20% Fo ~ 8500 91 ± 3 dB 1.0 W @ 0.5M 0.7,0.9,1.2,1.4KHz PAPER / METAL YES

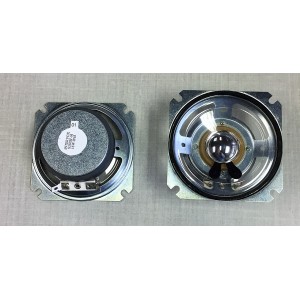

PDF WATERPROOF IP-65 SQUARE SPEAKER S350SF-M-16W-IP65 87.0 x 87.0 mm 32.0 mm 8 ± 15% @1.0KHz 10.0 / 16.0 500 ± 20% Fo ~ 5000 95 ± 3 dB 0.1 W @ 0.1M 0.6, 0.8,1.0,1.2KHz MYLAR / METAL YES
PDF GENERAL PURPOSE ROUND SPEAKER S400RA 102.0 mm 33.8 mm 8 ± 15% @0.8KHz 0.50 / 1.00 200 ± 20% Fo ~ 14000 91 ± 3 dB 1.0 W @ 0.5M 0.3,0.4,0.5,0.6KHz PAPER / METAL YES
PDF GENERAL PURPOSE SQUARE SPEAKER S400SA 102.0 x 102.0 mm 33.8 mm 8 ± 15% @0.8KHz 0.50 / 1.00 180 ± 20% Fo ~ 20000 91 ± 3 dB 1.0 W @ 0.5M 0.3,0.4,0.5,0.6KHz PAPER / METAL YES
Showing 1 to 16 of 16 (1 Pages)
