SMT PIEZO BUZZER

Use the filters below to narrow your search results...

Reset

Product Compare (0)
PDF Product Part No. FRAME DIAMETER FRAME DEPTH RATED VOLTAGE OPERATING VOLTAGE RESONANT FREQUENCY MAX CURRENT ELECTROSTATIC CAPACITY SOUND LEVEL OUTPUT TERMINAL TYPE OPERATING TEMPERATURE ROHS COMPLIANT

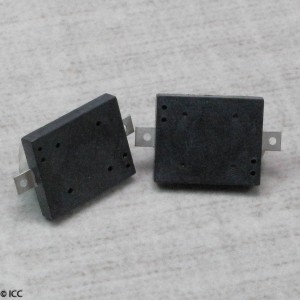

PDF SURFACE MOUNT PIEZO BUZZERS BRP1706SM-20 17.0 mm 6.0 mm 12 Vp-p 1 ~ 30 Vp-p 4000 Hz 3 mA 15000 pF ± 30% 90dB @ 10 cm SMT -20 TO +75°C YES
PDF SURFACE MOUNT PIEZO BUZZERS BSP0902SM-25-T/R 9.0 X 9.0 mm 1.9 mm 25 Vp-p 1 ~ 25 Vp-p 4000 Hz 1 mA 12000 pF ± 30% 70dB @ 10 cm SMT -30 TO +70°C YES
PDF SURFACE MOUNT PIEZO BUZZERS BSP111.7SM-25-GW-T/R 11.0 x 9.0 mm 1.7 mm 25 Vp-p 1 ~ 25 Vp-p 4100 ± 500 Hz 3 mA 13000 pF ± 30% 70dB @ 10 cm SMT -30 TO +70°C YES
PDF SURFACE MOUNT PIEZO BUZZERS BSP1203SM-25-T/R 12.0 x 12.0 mm 2.8 mm 25 Vp-p 1 ~ 25 Vp-p 4500 ± 500 Hz 3 mA 15000 pF ± 30% 75dB @ 10 cm SMT -40 TO +120°C YES
PDF SURFACE MOUNT PIEZO BUZZERS BSP122.5SM-25-GW-T/R 13.0 x 13.0 mm 2.5 mm 25 Vp-p 1 ~ 25 Vp-p 4100 ± 500 Hz 3 mA 15000 pF ± 30% 80dB @ 10 cm SMT -20 TO +70°C YES
PDF SURFACE MOUNT PIEZO BUZZERS BSP1407SM-20 14.8 x 14.8 mm 6.8 mm 12 vdc 1 ~ 20 Vp-p 5000 ± 500 Hz 3 mA 15000 pF ± 30% 85dB @ 10 cm SMT -20 TO +70°C YES
PDF SURFACE MOUNT PIEZO BUZZERS BSP1602SM-25-GW 16.0 x 16.0 mm 2.5 mm 3.0 vdc 1 ~ 25 Vp-p 4000 ± 500 Hz 1 mA 14000 pF ± 30% 75dB @ 10 cm SMT -20 TO +70°C YES
PDF SURFACE MOUNT PIEZO BUZZERS BSP1808SM-18 18.0 x 18.0 mm 8.0 mm 12 Vp-p 1 ~ 18 Vp-p 2200 Hz 5 mA 25000 pF ± 30% 90dB @ 10 cm SMT -40 TO +105°C YES
Showing 1 to 8 of 8 (1 Pages)
