PIEZO ELECTRIC ALARM WITH INTERNAL CIRCUITRY

PIEZO ELECTRIC ALARM WITH INTERNAL CIRCUITRY

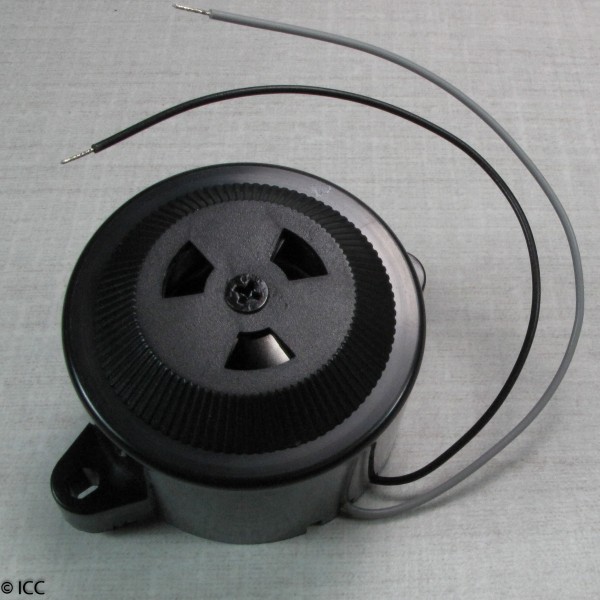

  • Product: PIEZO ELECTRIC ALARM WITH INTERNAL CIRCUITRY
  • Description: Piezo Siren
  • Part Number: BRP5038L-12-CS
SPECIFICATIONS
FRAME DEPTH 38.0 mm
FRAME DIAMETER 50.0 mm
MAX CURRENT 65 mA
MOUNTING DIMENSIONS 60.0 mm
OPERATING TEMPERATURE -20 TO +60°C
OPERATING VOLTAGE 6 ~ 16 vdc
RATED VOLTAGE 12 vdc
RESONANT FREQUENCY 3000 ~ 3200 ± 500 Hz
ROHS COMPLAINT YES
SOUND LEVEL OUTPUT 105dB @ 30 cm
TERMINAL TYPE 2 Wire Leads
TONE MODE SIREN

To process your Quote /Sample Request click the "VIEW CART:"" top right of page

DIMENSIONS
